Revisiting The Buckley-Leverett Question Again

(An Overview of a Proposed GRC/2004 Poster Presentation)¹

By Walter Rose²

ABSTRACT

Like the writings of many Authors^{1 to 21} during the 20^th Century³, some less-remembered ones to be recalled here in the presentation of the Poster Presentation mentioned in the first footnote below, are in a series of papers published by Rose and collaborators (1951 et seq.)^{22 to 47} where both parallel and perpendicular attempts also were being made again and again. The aim, of course, was (and indeed still is!) to simplify, upgrade and extend the utility of vintage Buckley-Leverett algorithms (1942)²⁵ so that at least partial proof of the proposed revisions could be confidentially employed as useful algorithms for productively modeling certain multiphase porous media transport processes. In particular, the cases to be considered are those where explicit account of classical coupling phenomena needs to be properly applied. This means that attention is being given to all low intensity irreversible processes where linearity between thermodynamic measurements involving conjugate macroscopically observed fluxes and forces on the one side, and between thermostatic measurements of displacements and equilibrium forces on the other. While many perplexing (indeed critical) issues still remain unresolved, the reader should not expect any of them to be fully illuminated by anything that will be displayed in any of the disclosures made during this Poster Presentation. After all, it has been generally conceded that for more than a Century the full proof of the underlying Darcian-based Buckley-Leverett dogma will not be available until coherent experimental proof of at least one of the many postulated theories that have appeared in the published literature so far has been fully confirmed. What will be found, however, in what follows is a new way to slightly (but perhaps significantly) rephrase a very old question. In particular, upon accepting equations that appear in Rose (1988)¹¹ and at many other locations, we simply give a verbal and equivalent analytical algorithm as a sensible way for future workers (particularly gifted modern experimentalists) to confirm an ad-hoc theoretical to model two-phase, isothermal. and low-intensity flow of immiscible Newtonian fluid pairs in homogeneous and isotropic consolidated water-wet porous rock samples that are perturbed because of superimposed viscous coupling and spontaneous capillary imbibition effects.

KEY WORDS

porous media, transport process modeling, classical Buckley-Leverett. two-phase systems, viscous coupling, spontaneous capillary imbibition.

THEORETICAL BACKGROUND

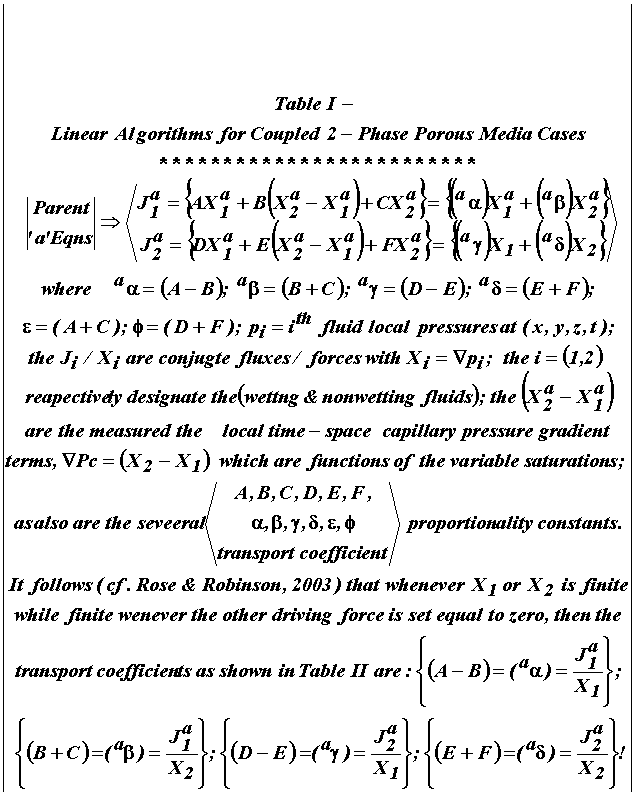

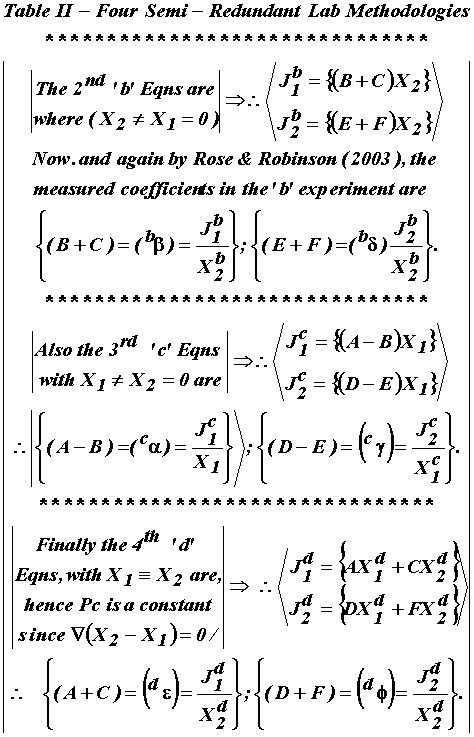

As in Rose¹ we start with the obvious but ingenious conservation of mass and Darcy-based statements which is where Buckley & Leverett² left things some 60 years ago … as indeed many modern authorities also do as a way to utilize the simpler Darcian-based formulations. ³ Thus, without apology we write:

LITERATURE CITATIONS

Some 20^th Century Writings About Porous Media Transport Phenomena

¹ E. Buckingham (1907), "Studies in the Movement of Soil Moisture", U.S.Department of Agriculture, Bureau of Soils, Bulletin 28,

² L. A. Richards (1931), "Capillary Conduction of Liquids through Porous Media", Physics, 1: 318-333.

³ M. Muskat (1937), The Flow of Homogeneous Fluids Through Porous Media; cf. also Muskat (1949), Physical Principles of Oil Production, both being McGraw-Hill Books (New York).

⁴ M. K. Hubbert (1940), "Theory of Ground Water Motion", Journal of Geology, 48: 785-044: see also in (1956), "Darcy Law and the Field Equations of the flow of underground fluids", Transactions AIME, 207: 222-239; and see below reference to the Deffeyes (2001) .

⁵ S. E. Buckley and M. C. Leverett (1942), "Mechanism of Fluid Displacement in Sands", Transactions AIME, 146: 107-116.

⁶ A. E. Scheidegger (1957), The Physics of Flow through Porous Media, University of Toronto Press; see (1960) and (1974) for the 2^nd and 3^rd Editions of this one of his many relevant monographs.

⁷ M. Tribus (1961), Thermostatics and Thermodynamics (D. Van Nostrand (especially see Chapter 15, p. 519 ff.).

⁸ S. R. DeGroot and P. Mazur (1962), Non-Equilibrium Thermodynamics, for an overview of Onsager's Nobel Prize awardwed work (North-Holland Publishing Company. Amsterdam).

⁹ J. Bear (1972), Dynamics of Fluids in Porous Media, American Elsevier (New York); also see later ^the J. Bear & Y. Bachmat (1990), Introduction to Modeling of Transport Phenomena in Porous Media, cf. §5.3.5 in particular, (Kluwer Academic Publishers).

¹⁰ C. Marle (1981) in Multiphase Flow in Porous Media, (Gulf Publishing Company).

¹¹ F. A. L. Dullien (1992a) in Porous Media: Fluid Transfer and Pore Structure, 2^nd Edition, (Academic Press. New York)

¹² F. Siddiqui and Larry Lake (1992b), "A Dynamic Theory of Hydrocarbon Migration", Mathematical Geology 24: 305-328.

¹³ Zarcone & Lenormand (1994), "Determination experimentale de couplage visqueux dans les ecoulements diphasiques en Milieu poreux", C. R. Acad. Sci. Paris Serie II , 1429-1438.

¹⁴ Dullien & Dong (1995) "Experimental Determination of the Flow Transport Coefficients in the Coupled Equations of Two-phase Flow in Porous Media", Transport in Porous Media, 25: 97-120.

¹⁵ M. Kaviany (1995) in Principles of Heat Transfer in Porous Media. 2^nd Edition, (Springer Verlag. Berlin).

¹⁶ A. Hadad, J. Benbat, H. Rubin (1996), "Simulation of Immiscible Multiphase Flow in Porous Media. A Focus on the Capillary Fringe" in Transport in Porous Media, 12: 229-240.

¹⁷ A. Babchin and J-. Y. Yuan (1997), "On the capillary coupling between two phases n a Droplet rain Model", Transport in Porous Media, 26: 226-228.

¹⁸ Ayub, Muhammad and Bentsen, Ramon, (1999), “Interfacial viscous coupling: a myth or reality?”, Journal of Petroleum Science & Engineering, 23: 13-26.

¹⁹ Bentsen, R. G. (2001), “The Physical Origin of Interfacial Coupling in 2-Phase Flow in Porous Media”, Transport in Porous Media, 44: 109-122./

²⁰ K. S. Deffeyes (2001), Hubbert's Peak, The Impending World Oil Shortags, cf. especially page 201 for his discussion where a deivation is given for Hubberrt's use if the 'logiatic equation' firasgt employed in 1838 by Verlust in his analysis of Malthus's famous unlimited population growth theory in Corr. Math. et Phys.,10: 113.

²¹ R. Byron Bird, Warren Stewart, Edwin Lightfootl (2002) Tr/ansport Phenomena, cf. 2^nd Edition in (2002), Wiley, New York.

Some Post-1950 to Date Papers by W. Rose & Collaborators

²² W. Rose (1951). "Some problems of Relative Permeability Measurement", Proceedings of the 3^rd World Petoleum Congress, II: 446-459, this being a companion paper to the one presented by Yuster at the same conference.

²³ W. Rose and P. H. Scott (1953), "An Explanation of the Yusteerr Effect", Journal of Petroleum Technology, 4: 19-20; see also W. Rose (1960), "Effect of Fluid/Fluid Interfacial Boundary Condition in Affecting Multiphase Fluid Flow", Illinois State Geologic Survey, Circular 291 (19 pages).

²⁴ W. Rose and R. Heins (1962), "Moving Iterfaces and Contact Angle Rate-Dependentcy", Jounal of Colloid Science, 17: 39-48; cf. Rose (1961),"Fluid/Fluid Interfaees in Steady Motion", Nature, 191, 242=243.

²⁵ W. Rose (1963). "Aspects des Processus de Mouillage dans les Solides Poreaux" in l'Institut Française du Petrole. XVIII: 1571-1590.

²⁶ W. Rose (1966), "Reservoir Engineering, Reformulated" in the Bulletin of the Penn State Engineering Experiment Station, Circular 71: 23-68.

²⁷ W. Rose (1969), "Transport through Interstitial Paths of Porous Solids", METU (Turkey) Journal of Pure & Applied Science, 2: 117-132.

²⁸ W. Rose (1972), "Reservoir Engineering at the Crossroads. Ways of Thinking and Ways of Doing", Bulletin of the Iranian Petroleum Institute, 46: 23-27; see also ¹⁷ W. Rose (1974), "Second Thoughts on Darcy's Law", ibid, 48: 25-30.

²⁹ W. Rose (1976), "Darcy's Law Revisited (cf. especially Appendix therein)", Journal of Mining Geology (Nigeria), 13: 38-44.

³⁰ W. Rose & R. Gallegos (19-23 Matzo 1979 ), "Measuring Relative Permeabilities for Estimating Reserves", Procedimiento Panamericano de Ingenieria del Petroleo, Mexico, Abstract in Programa Technico.

³¹ W. Rose (1987), "Relative Permeability", SPE Handbook Of Petroleum Engineering, Chapter 28 (25 pages).

³² W. Rose, (1988), "Attaching new meanings to the Equations of Buckley and Leverett", Journal of Petroleum Science & Engineering, 1: 223-228.

³³ W. Rose (1990a), Lagrangian Simulation of Coupled Two-phase Flows", Mathematical Geology, 22: 641-654.

³⁴ W. Rose (1990b), "Optimising Experimental Design for Coupled Porous Media Flow Studies", Experimental Thermal & Fluid Science, 3:613-532.

³⁵ W. Rose (1991a), "Richards Assumptions and Hassler's Presumptions", Transport in Porous Media, 6: 91-99.

³⁶ W. Rose (1991b), "Critical questions about the coupling hypothesis", Journal of Petroleum Science & Engineering, 5: 299-307.

³⁷ W. Rose (1995a), "Ideas about Viscous Coupling in Anisotropic Media", Transport in Porous Media, 18: 87-93; cf.

³⁸ W. Rose (1995b), "Generalized Description of Multiphase Flow in Anisotropic Porous Media", Proceedings 32^nd Annual Tevhnical Meeting of the Society of Engineering Sciences Abstract, pp. 483- 489.

³⁹ W. Rose (1996), "Letter to the Editor of TiPM", Transport in Porous Media, 22: 359-360.

⁴⁰ W. Rose, A. Babchin & J. Y. Yuan (1999a). "Coupled Transport in and through Fractured Rocks", Proceedings Lawrence Berkeley National Laboratory, #42717, Extended Abstract pp, 210-223.

⁴¹ W. Rose (1999b), "Relative Permeability Ideas … Then and Now", buried in the Proceedings of the SPE Eastern Division Regional Meeting, SPE Paper 42718, pages 115-141.

⁴² W. Rose (2000a), ” A Commentary on the Bartley/Ruth paper", Transport in Porous Media, 40: 355-358.

⁴³ W. Rose (2000b), "Myths About Later-day Extensions of Darcy's Law", in J. of Petroleum Science & Engineering, 26: 187-198.

⁴⁴ M. Asadi, Ali Ghalambor, M. K. Shirazi & W. Rose (2000c), "Anisotropic Permeability Measurement fo Coupled Systems, Proceedings SPE Asian- Pacific Conference on Integrated Modeling for

Asset Management, Yokohoma, Japan, SPE Paper 59396.

⁴⁵ W. Rose (2001a), "Modeling Forced versus Spontaneous Capillary Imbibition Processes Commonly Occurring in Porous Sediments", Journal Of Petroleum Science & Engineering, 30: 155-166.

⁴⁶ W. Rose (2001b), "Theory of Spontaneous versus Induced Capillary Imbibition", Transport in Porous Media, Technical Note 44: 591-598.

⁴⁷ W. Rose and Derek Robinson (2003, in press), "Transport Processes in Fluid-saturated Porous Media" in a Letter-to-the-Editor format, Transport in Porous Media.
